Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the blind cover.

-- The release tabs -2- on the Cigarette Lighter Release Tool: T40148 must engage in the openings on the cigarette lighter -3- -arrow-. To do so, the threaded rod -1- must be slid all the way down.

Fig 1: 12 V Socket 5 -U26-

Courtesy of AUDI OF AMERICA, LLC

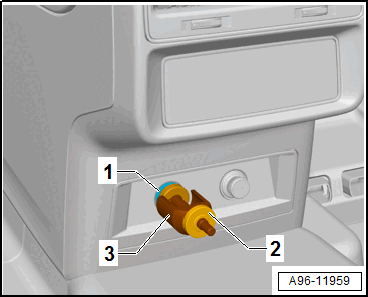

-- Slide the release tool -3- all the way into the cigarette lighter -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the thumbwheel -2- on the Cigarette Lighter Release Tool: T40148 clockwise all the way to the end stop.

The piston -2- is pulled upward and the release tabs -1- on the Cigarette Lighter Release Tool: T40148 spread -arrows-.

Fig 2: Identifying Release Tool T40148 In Use
Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter from the illumination ring with the Socket Illumination Bulb -L42- using the Cigarette Lighter Release Tool: T40148 .

-- Guide the wire out through the mount.
