12 V Socket 4 -U20-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Using a narrow screwdriver at the opening -arrow A- release the cap and at the same time push on the bottom slightly upward in direction of -arrow B-.
-- Remove the cap.
-- Remove the bolt -2-.
-- Pivot the button trim -1- out of the mount in direction of -arrow C-.
-- Disconnect the connectors.

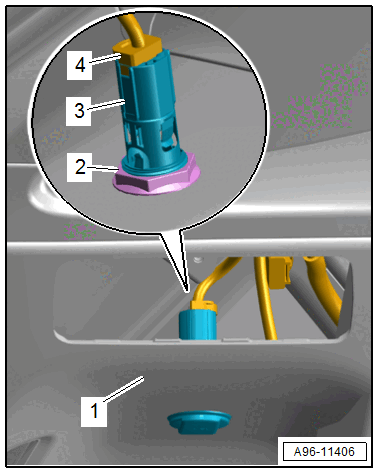

-- Remove the nut -2-.
-- Remove the 12 V socket -3- from the luggage compartment side trim panel -1-.
-- Disconnect the connector -4-.
-- If the 12 V socket cannot be removed as described the luggage compartment side trim panel in the area of the 12 V socket must be loosened. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
