12 V Socket 2 -U18-, REMOVING AND INSTALLING: Removing

Folding Compartment Socket:

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Open the folding compartment and remove the lighter/blind cover.

Socket Trim:

-- Remove the socket trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

-- Remove the lighter/blind cover.

Continuation for All:

Fig 1: 12 V Socket 5 -U26-

Courtesy of AUDI OF AMERICA, LLC

-- The release tabs -2- on the Cigarette Lighter Release Tool Cigarette Lighter Release Tool: T40148  must engage in the openings on the cigarette lighter -3- in direction of -arrow-. To do so, the threaded rod -1- must be slid all the way down.

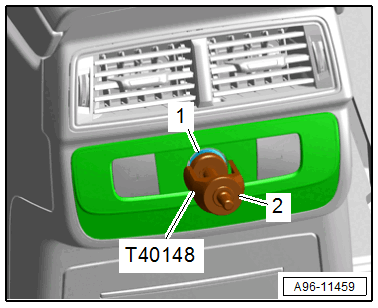

-- Slide the Cigarette Lighter Release Tool: T40148  all the way into the cigarette lighter -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the thumbwheel -2- on the Cigarette Lighter Release Tool: T40148  clockwise all the way to the end stop.

• The piston -2- is pulled upward and the release tabs -1- on the Cigarette Lighter Release Tool: T40148  spread in direction of -arrows-.
  Fig 2: Identifying Release Tool T40148 In Use

  Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter using the Cigarette Lighter Release Tool: T40148  from the illumination ring with the Cigarette Lighter Illumination Bulb -L28-.

-- Guide the wire out through the mount.
