Alarm Horn -H12-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Audi Q7
-- Remove the fresh air intake with water drain. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
Audi Q7 e-tron
-- Remove the outer cover for the fresh air intake. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .

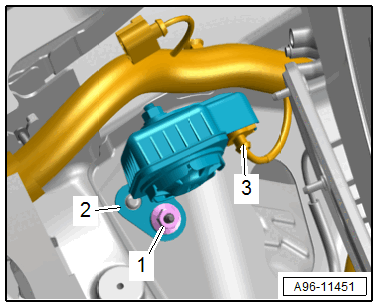

-- Disconnect the connector -3-.
-- Remove the nut -1-.
-- Remove the bracket -2- with alarm horn upward.

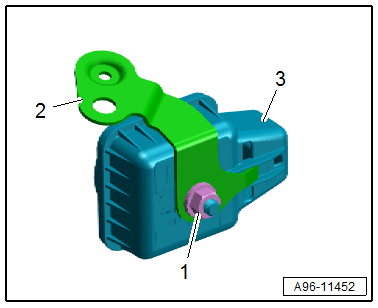

-- Remove the nut -1- and the bracket -2- from the alarm horn -3-.
