Component Location Overview - Abs /Esp
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

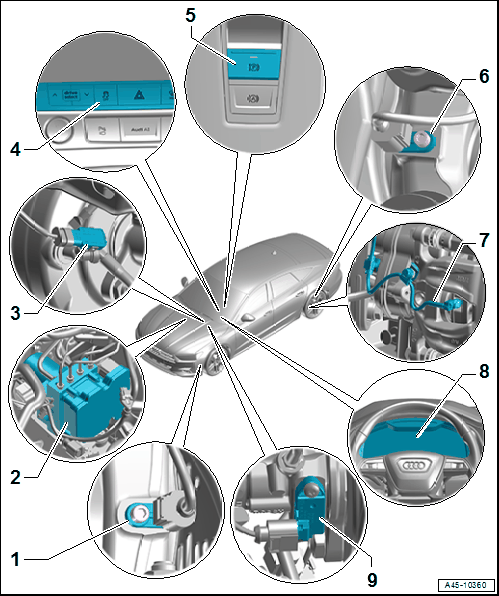

- Front Speed Sensor
- Left Front ABS Wheel Speed Sensor -G47-
- Right Front ABS Wheel Speed Sensor -G45-
- Overview. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR .
- Hydraulic Control Unit
- With
- ABS Control Module -J104-
- ABS Hydraulic Unit -N55-
- The control module and the hydraulic unit can be separated
- Overview. Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT .
- With
- Vacuum Sensor -G608-
- Overview. Refer to OVERVIEW - VACUUM PUMP, 3.0L TDI ENGINE .
- Switch Module in Instrument Panel, Center -EX22-
- With
- ASR/ESP Button -E256-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- With
- Parking Brake Button -EX12-
- With
- Electromechanical Parking Brake Indicator Lamp -K213-
- Push Button Illumination Bulb -L76-
- Removing and installing. Refer to Parking Brake Button -EX12- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING .
- With
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Overview. Refer to OVERVIEW - REAR AXLE SPEED SENSOR .
- Brake Pad Wear Sensor
- Left Front Brake Pad Wear Sensor -G34-
- Right Front Brake Pad Wear Sensor -G35-
- Left Rear Brake Pad Wear Sensor -G36-
- Right Rear Brake Pad Wear Sensor -G37-
- In the respective inner brake pad
- Overview. Refer to OVERVIEW - FRONT BRAKES .
- Instrument Cluster with Instrument Cluster Control Module -J285-
- The indicator lamps cannot be replaced separately
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Brake Lamp Switch -F- with Brake Pedal Position Sensor -G100-
- Component location: on the brake master cylinder
- Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER, VACUUM BRAKE BOOSTER .
