Intake Hose And Connection Piece, Removing And Installing, 3.0L Engine AUDI Q7/Q8: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the repair information. Refer to REPAIR INFORMATION .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

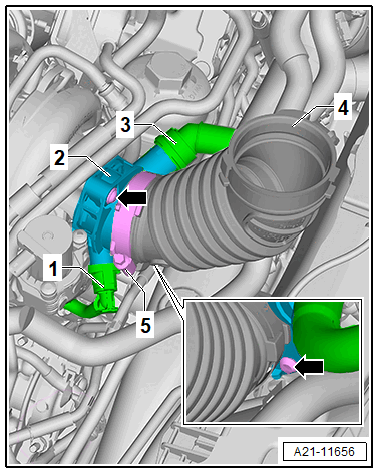

-- Loosen the hose clamp -5-, remove the intake hose.
-- Remove the bolts -arrows-.
-- Remove the intake hose and crankcase ventilation hose -1- by pressing the release buttons on both sides.
-- If installed, remove the hose -1- for the EVAP system by pushing the release buttons on both sides.
-- Remove the crankcase ventilation hose -arrows- by pressing the release buttons on both sides.
-- Remove the intake hose.
