Lower Air Duct Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
-- Loosen the hose clamps -1 and 3-, and remove the air duct hose -2- from the air duct pipe.

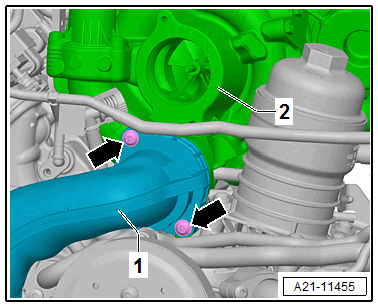

-- Remove the bolts -arrows-.
-- Remove the air duct pipe -1- from the turbocharger -2-.
-- Guide the air duct pipe -1- upward.
