Thermal Management Coolant Pump 4 -V620-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear and left noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the bolts and nuts -arrows-.

Fig 1: Coolant Pipe on Left Lower Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

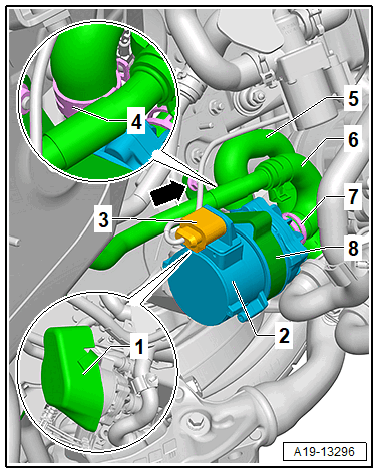

-- Push the coolant line -1- upward.

-- Remove the heat shield boot -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamps -4 and 7-, then clamp off the coolant hoses -5 and 6- with the Hose Clamps - Up To 25mm: 3094 and then remove them.

-- Remove the nut -arrow-.

-- Loosen the retaining bracket -8- and remove the Thermo Management Coolant Pump 4 -V620- -2-.
