OVERVIEW - Transmission Fluid Cooling Pump -V478-, WITH AUXILIARY RADIATOR FOR TRANSMISSION FLUID COOLER
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

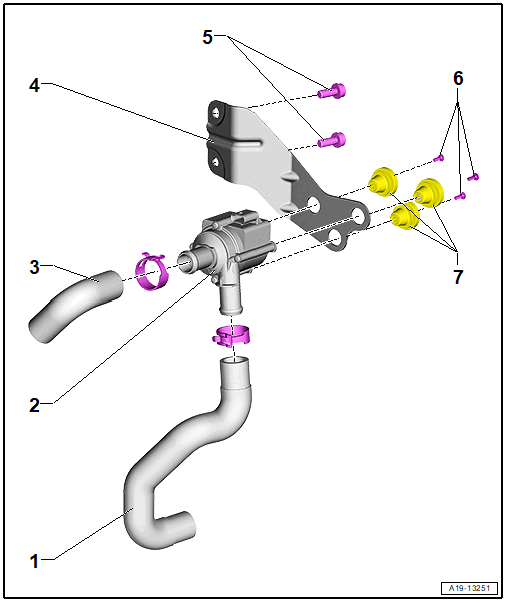

Fig 1: Exploded View Of Transmission Fluid Cooling Pump -V478-, With Auxiliary Radiator For Transmission Fluid Cooler
- Coolant Hose
- Transmission Fluid Cooling Pump -V478-
- Removing and Installing. Refer to Transmission Fluid Cooling Pump -V478-, REMOVING AND INSTALLING, VEHICLES WITH AUXILIARY RADIATOR FOR TRANSMISSION FLUID COOLER .
- Coolant Hose
- Bracket
- For the Transmission Fluid Cooling Pump -V478-
- Bolt
- 20 Nm
- Quantity: 2
- Bolt
- 1.3 Nm
- Quantity: 3
- Rubber Bushing
- Quantity: 3
