OVERVIEW - Transmission Fluid Cooling Valve -N509-

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

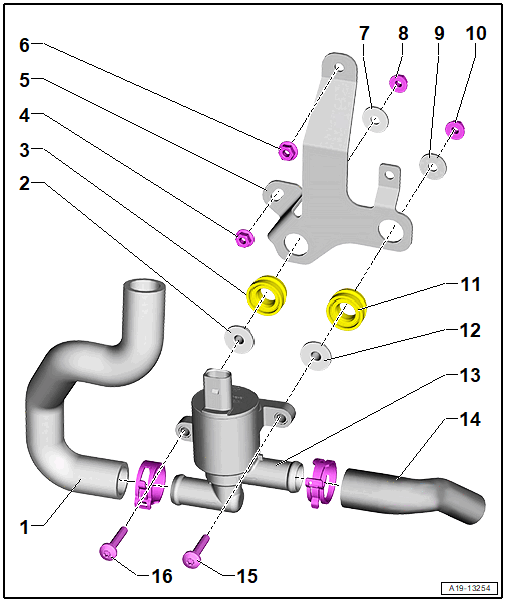

Fig 1: Exploded View Of Transmission Fluid Cooling Valve -N509-
GWWA19-13254Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Spacer Sleeve
  3. Rubber Bushing
  4. Nut
    • 5 Nm
  5. Bracket
    • For Transmission Fluid Cooling Valve -N509-
  6. Nut
    • 5 Nm
  7. Washer
  8. Nut
  9. Washer
  10. Nut
  11. Rubber Bushing
  12. Spacer Sleeve
  13. Transmission Fluid Cooling Valve -N509-
  14. Coolant Hose
  15. Bolt
    • 5 Nm
  16. Bolt
    • 5 Nm
