Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front section of the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
CAUTION:
There is a risk of damaging the straps on the plastic coolant pipes if they are handled incorrectly.
- Counterhold at the coolant pipe when disconnecting and connecting the coolant hose.

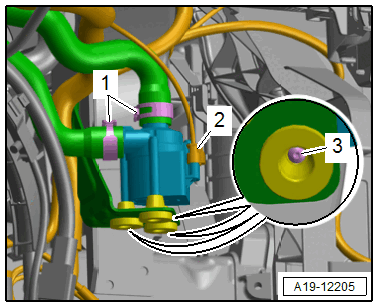

-- Disconnect the connector -2-.
-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the Hose Clamps - Up To 25mm: 3094 and then remove them.
-- Remove the bolts -3- and remove the coolant pump.
