After-Run Coolant Pump -V51-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the right coolant pipe from the transmission. Refer to RIGHT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .

-- Remove the right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the right drive axle from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

Vehicles without Auxiliary Radiator for Transmission Fluid Cooler

Fig 1: Component Location - Transmission Fluid Cooling Pump -V478-, Vehicles Without Auxiliary Radiator for Transmission Fluid Cooler

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -4-.

-- Remove the Transmission Fluid Cooling Pump -V478- -10- with the bracket -3-.

Continuation for All Vehicles

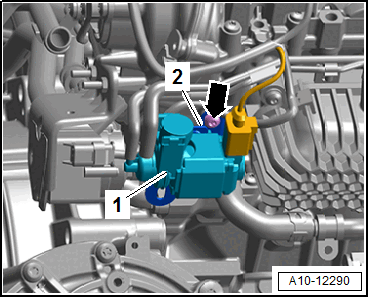

-- Remove the change-over valve -1- from the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and remove the bracket -2- upward.

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

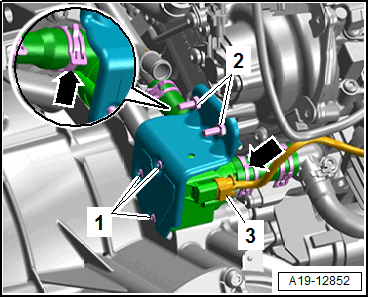

-- Remove the double bolts -2- and bolts -1- and remove the bracket.

-- Remove the hose clamps -arrows- and remove the After-Run Coolant Pump -V51- with bracket.
