Transmission Fluid Cooling Valve -N509-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left front section of the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

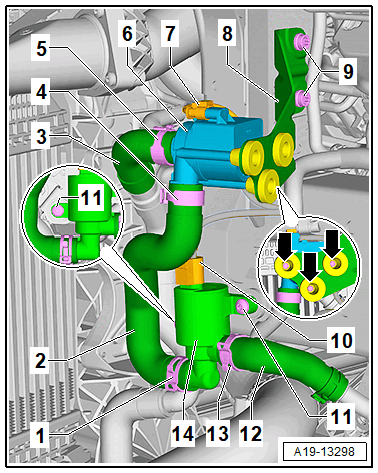

-- Disconnect the connector -10-.
-- Place a cloth underneath to catch any escaping coolant.
-- Remove the coolant hoses -2 and 12- with the Hose Clamps - Up To 25 mm: 3094 and disconnect it from the Transmission Fluid Cooling Valve -N509- to do so loosen the hose clamps -1 and 13-.
-- Remove the bolts -11- and then remove the Transmission Fluid Cooling Valve -N509-.
