Check Valve, Removing And Installing, With Vacuum Line In Engine Compartment, 4.0L TDI Engine: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left subframe shield upper section. Refer to SUBFRAME .
-- Remove the front engine oil cooler. Refer to ENGINE OIL COOLER .
CAUTION:
There is a Risk of damaging the vacuum hoses.
- Carefully remove the vacuum hoses. A damaged vacuum hose must be replaced.

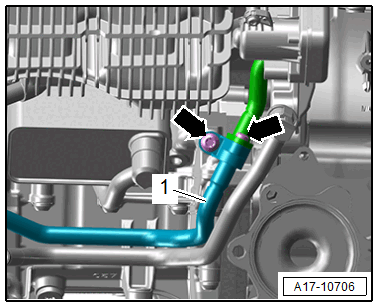

-- Remove the bolts -arrows- and remove the vacuum hose -1-.
-- Remove the bolt -2- and remove the vacuum hose -1- with the check valve.
