Charge Air Pressure Actuator -V465-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

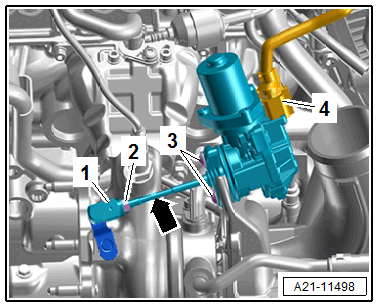

- If the charge air pressure actuator is replaced, apply the installation position of the lock nut on the new charge air pressure actuator.
-- Bring the Charge Air Pressure Actuator -V465- into the installation position and tighten the bolts -3-.
-- Install the control rod until it contacts the lock nut -2- in the operating lever -1-.
-- Connect the connector -4-.
