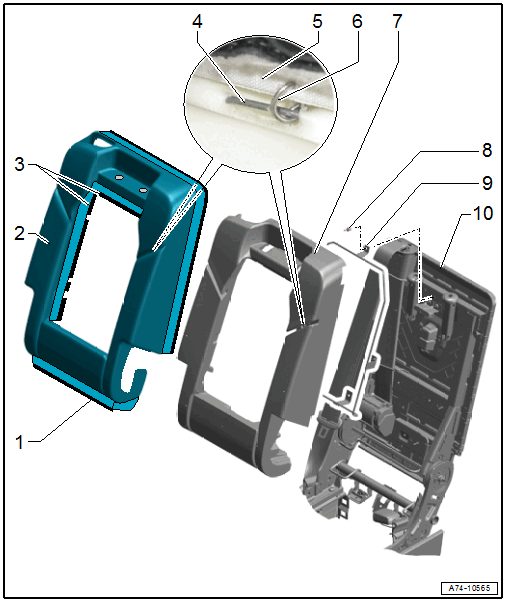

Overview - Cover And Cushion, Second Row Backrest With Center Armrest
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
- Cover
- Check that there are no folds after installing
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, CENTER SECOND ROW BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, CENTER SECOND ROW BACKREST .
- Molding
- Sewn into cover
- For attaching the cover to the wire frame
- Check for proper seating
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers: VAG1634 .
- Cushion
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, CENTER SECOND ROW BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, CENTER SECOND ROW BACKREST .
- Expanding Clip
- Wire Frame
- Backrest Frame
