Cover And Cushion, Removing And Installing, Third Row Backrest: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat. Refer to THIRD ROW SEAT, REMOVING AND INSTALLING .

-- Fold the headrest -1- forward.

-- Open the headrest cover at the opening -arrow-.

-- To do so, insert the : 80-200  between the cover opening and push the lower cover side with the U-profile -3- inward.

-- At the same time, remove the upper cover side with the flat profile -2- from the U-profile.

-- Reach with a hand under the headrest cushion and release the headrest -2- alternating at the clips -1-.

Courtesy of AUDI OF AMERICA, LLC

-- To do so, press and hold the clips -arrow- and remove the headrest from the headrest mount.

-- Fold back the headrest mount.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the headrest trim -1- using the : 3409  -arrow- and remove it.

-- Remove the left and right backrest hinge cover using the : 80-200  -arrows-.

Courtesy of AUDI OF AMERICA, LLC

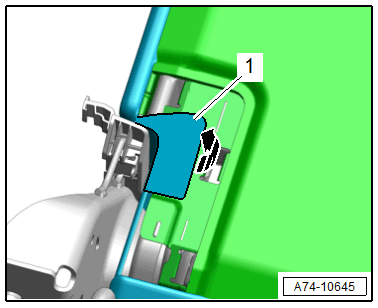

-- Disengage the left and right -1- cover on the metal hook -arrow-.

Courtesy of AUDI OF AMERICA, LLC

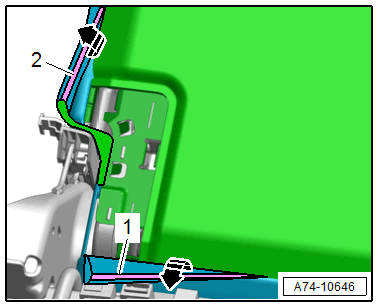

-- Disengage the cover moldings -1 and 2- along the outside of the backrest -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull back the cover.

-- Remove the cushion and cover.
