Cover And Cushion, Removing And Installing, Second Row Seat Pan High: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

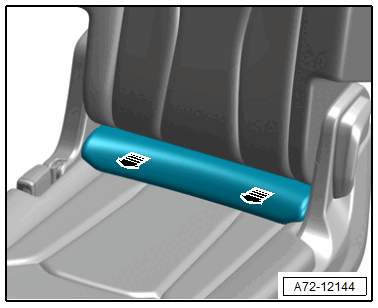

GWWA72-12144Courtesy of AUDI OF AMERICA, LLC

-- Remove the cushion insert -arrows-.

-- Press the locking mechanism -arrow A- and pull the cushion upward -B arrows-.

GWWA72-12027Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector for the seat heating.
