Seat Pan Cover And Cushion, Removing And Installing, Seat With Seat Depth Adjuster: Removing

-- Versions: observe the notes for the passenger occupant detection system. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .

-- Remove seat bolster cushion SEAT BOLSTER CUSHION ON SEAT PAN, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .

-- Remove the seat cushion fan. Refer to FRONT SEAT FAN, REMOVING AND INSTALLING .

-- Release, disconnect and free up the connectors. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Disengage the left and right rubber bands -2- at the seat depth adjuster and secure from sliding back using a cable tie, for example.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the molding -1- for the cover on the seat depth adjuster.

-- Remove the left and right trim for the seat depth adjuster -1- forward -arrow-.

Courtesy of AUDI OF AMERICA, LLC

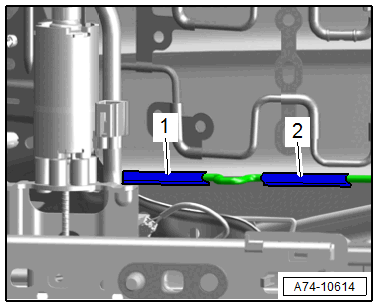

-- Disengage the left and right molding for the cover -1 and 2- using the : 3370  .

Courtesy of AUDI OF AMERICA, LLC

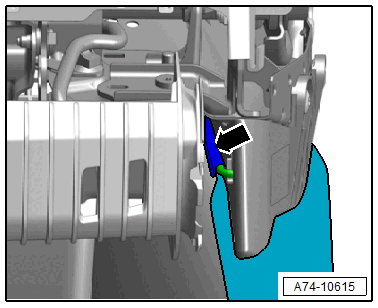

-- Disengage the cover molding -arrow- from the front using a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

-- Release the tabs -2 and 3- and remove the seat cushion retaining plate together with the cover and cushion.

Courtesy of AUDI OF AMERICA, LLC
