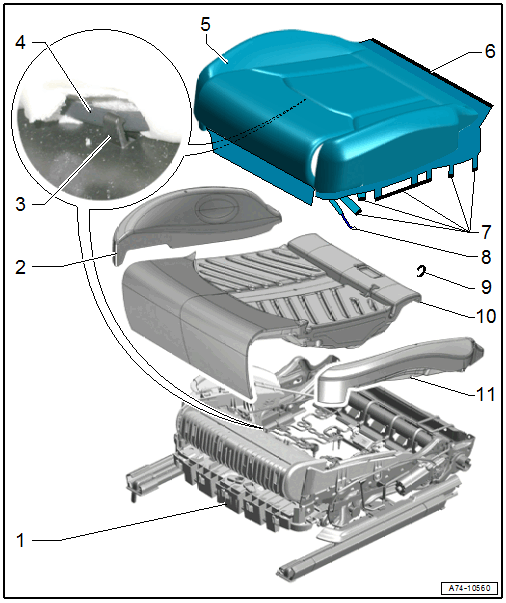

Overview - Seat Pan Cover And Cushion, Seat With Seat Depth Adjuster
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Pan
- With a seat depth adjuster
- Seat Bolster Cushion
- Removing and Installing. Refer to SEAT BOLSTER CUSHION ON SEAT PAN, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .
- Catch
- On the seat depth adjuster cover
- Quantity: 4
- Clamping Strip
- For attaching the cover and seat cushion to the seat depth adjuster cover
- Sewn into cover
- Cover
- Check that there are no folds after installing
- Cover with Seat Cushion, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .
- Cover and Seat Cushion, Disconnecting. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Tab
- With hook
- Sewn into cover
- For engaging the cover on the seat pan
- Rubber Band
- Quantity: 2
- Pushed into the cover mounting pocket
- for attaching to the seat depth adjuster
- Upholstery Clip
- For attaching the cover to the seat cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers: VAG1634 .
- Cushion
- Cover with Cushion, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .
- Cover and Seat Cushion, Disconnecting. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Seat Bolster Cushion
- Removing and Installing. Refer to SEAT BOLSTER CUSHION ON SEAT PAN, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .
