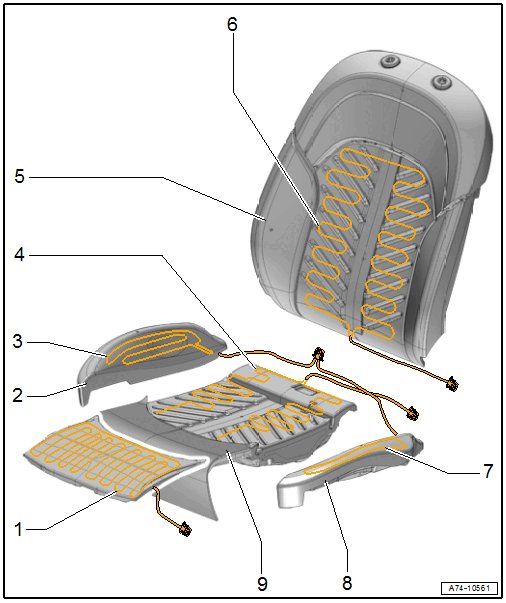

Overview - Seat Heating Element
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Left Front Seat Extension Heating Element -Z168-
- Front passenger side: Right Front Seat Extension Heating Element - Z169-
- only for versions equipped with seat depth adjuster
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
- Seat Bolster Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT BOLSTER CUSHION .
- Left Seat Bolster Heating for Left Front Seat -Z151-
- Front passenger side: Left Seat Bolster Heating for Right Front Seat -Z153-
- The heating element is glued to the seat bolster cushion
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT BOLSTER CUSHION .
- Left Front Seat Heating Element -Z45-
- Front passenger side: Right Front Seat Heating Element -Z46-
- Heating element sewn into cover; if faulty, replace the cover. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Backrest Cushion
- Left Front Seat Heated Backrest -Z116-
- Front passenger side: Right Front Seat Heated Backrest -Z117-
- Heating element sewn into cover; if faulty, replace the cover. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Right Seat Bolster Heating for Left Front Seat -Z152-
- Front passenger side: Right Seat Bolster Heating for Right Front Seat -Z154-
- The heating element is glued to the seat bolster cushion
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT BOLSTER CUSHION .
- Seat Bolster Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT BOLSTER CUSHION .
- Seat Cushion
- Versions with seat depth adjuster and seat heating element: apply new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
