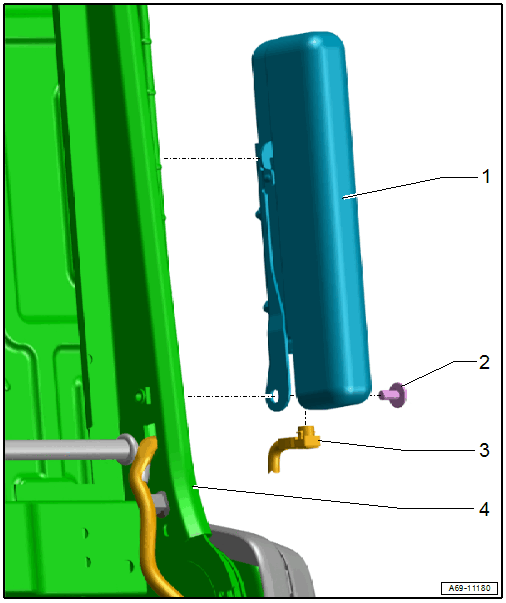

Overview - Rear Thorax Airbag
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Thorax Airbag
- Driver side: with Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger side: with Passenger Side Rear Thorax Airbag Igniter -N202-
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- Replace after removing.
- Clean the threaded hole for the bolt with a thread tap, for example
- Install with locking compound. Refer to the Parts Information for the locking compound.
- 10 Nm
- Wire
- From the Driver Side Rear Thorax Airbag Igniter -N201- /Passenger Side Rear Thorax Airbag Igniter -N202- going through to the connector station.
- Removing and Installing. Refer to THORAX AIRBAG WIRE, REMOVING AND INSTALLING .
- Backrest Frame
