Third Row Rear Belt End Fitting, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the third row rear seat backrest.
-- Unclip the cover -1- on the belt end fitting -2- -arrows- and push it upward.
CAUTION:
The spring will get bent if it is removed incorrectly. Replace the three-point seat belt if the spring gets bent.
- Move the spring -3- just far enough until it is possible to release the tab on the spring.

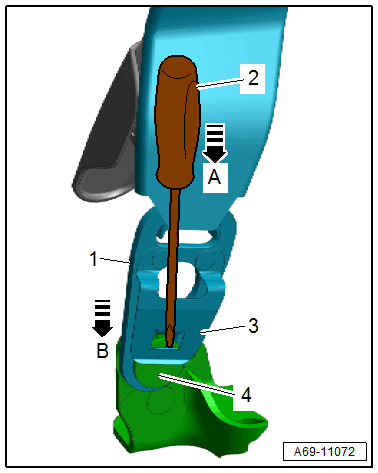

-- Release the spring tab -3- by inserting a small screwdriver -2- in the opening in the spring -arrow A-.
-- Push the belt end fitting -1- downward -arrow B- and disengage from the pin -4-.
