Outer Second Row Rear Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

CAUTION:

Risk of airbag deployment.

There is a risk of injury.

- Check if the airbag indicator lamp turns on or blinks.

- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.

- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.

- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.

-- Remove the rear belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the C-pillar trim panel and guide out the seat belt webbing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Pyrotechnical components can deploy unintentionally.

There is a risk of injury.

- Discharge static electricity by briefly touching the door striker.

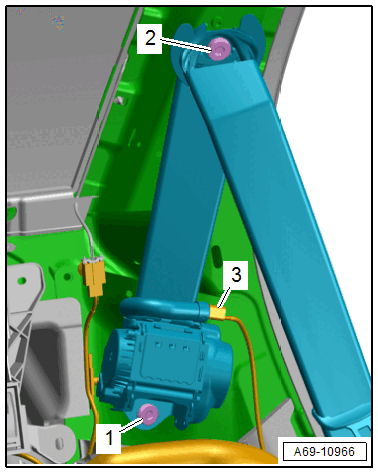

-- Equipment level: release the connector lock with a small screwdriver and remove the connector -3- for the belt tensioner.

-- Remove the bolts -1 and 2-.

-- Guide out the three-point seat belt from the mount.
