Rear Seat Belt Latch, Removing And Installing, Third Row

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

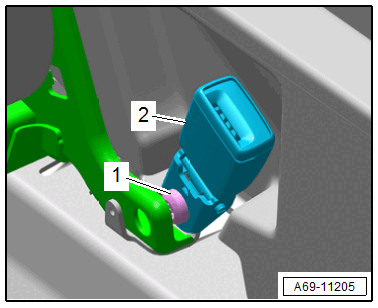

Outer Seat Belt Latch, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the third row seat pan cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

-- Remove the side sill seat frame trim panel. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING, THIRD ROW .

-- Remove the bolt -1-.

-- Remove the seat belt latch -2-.

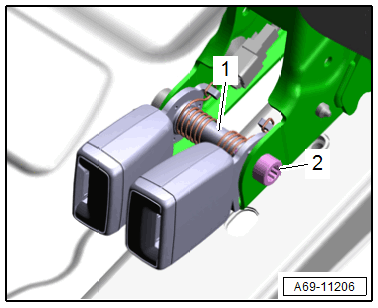

Center Seat Belt Latches, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the third row seat pan cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

-- Remove the seat frame trim panel on the tunnel-side. Refer to TUNNEL-SIDE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, THIRD ROW .

-- If equipped, disconnect the connectors for the seat belt switch and free it up.

-- Remove the bolt -2-.

-- Remove the seat belt latches -1-.

Installing

Install in reverse order of removal.
