Overview - Front Three-Point Seat Belt, Market-Specific Rest Of World

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

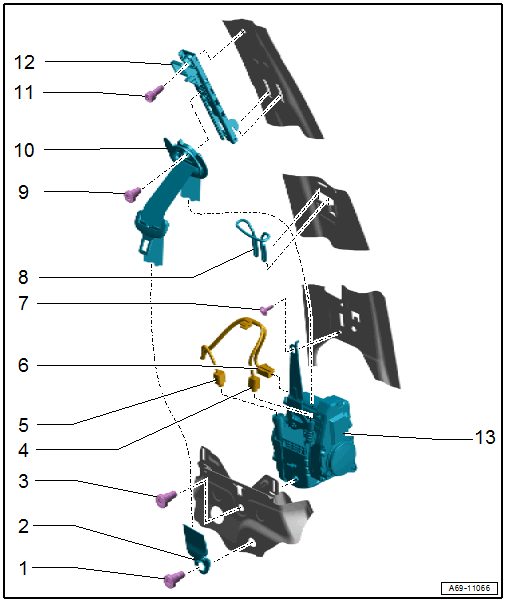

Fig 1: Exploded View Of Front Three-Point Seat Belt, Market-Specific Rest Of World

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING, MARKET-SPECIFIC REST OF WORLD .
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Connector
- Driver side: for the Driver Belt Force Limiter -G551-
- Front passenger side: for Front Passenger Belt Force Limiter -G552-
Connector
- Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
Connector
- Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side: for Right Front Seat Belt Tensioner Control Module -J855-
Bolt
- 4.5 Nm
Front Seat Belt Guide
- Place seat belt webbing in the front seat belt guide
- Do not jam or damage the seat belt webbing
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Seat Belt Guide
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 20 Nm
Seat Belt Height Adjuster
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
Automatic Belt Retractor
- Driver side with
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Driver Belt Force Limiter -G551-
  - Equipped on some models: Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side with
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  - Front Passenger Belt Force Limiter -G552-
  - Equipped on some models: Right Front Seat Belt Tensioner Control Module -J855-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- The Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
