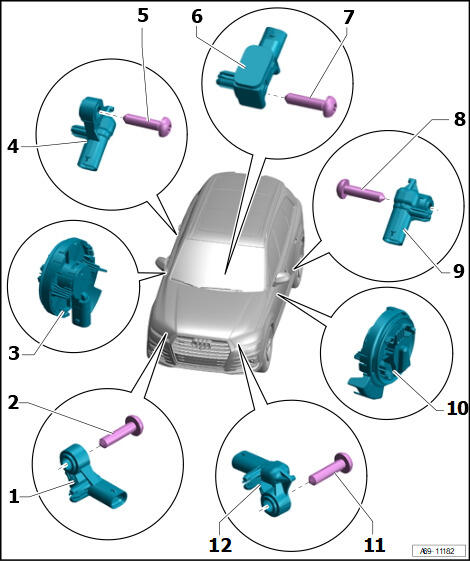

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: on the right side of the headlamp mount
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Behind the sill panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Center Crash Sensor for X/Y Axis -G858-
- Component location: to the rear of the center tunnel under the center console
- Removing and Installing. Refer to Center Crash Sensor for X/Y Axis -G858-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Behind the sill panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: on the left side of the headlamp mount
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
