Roof Trim Molding Door Seal, Removing And Installing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Front door: remove the inner door seal from the body flange in the roof trim molding area. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
-- Rear door: remove the rear roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

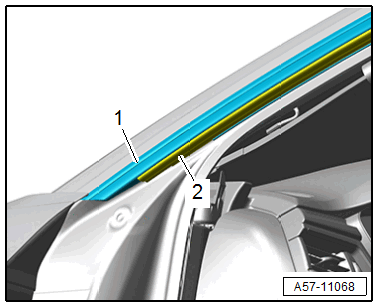

-- Remove the door seal -2- from the roof trim molding -1-.
Installing
Install in reverse order of removal and note the following:

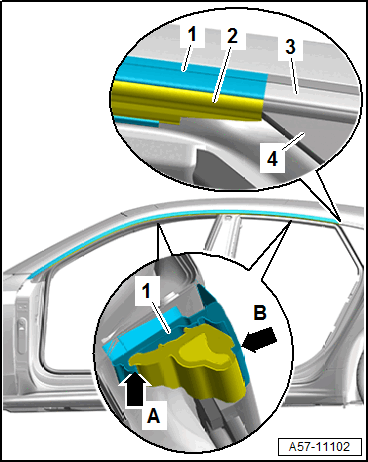

-- Place the door seal -2- flush on the edge to the side window -4- on the side window seal -3- and a hand wide in the direction of the A-pillar.
- Insert the door seal on the rear -arrow A- in the roof trim molding mount -1- and engage on the front side -arrow B-.
-- Press the door seal all the way on the roof trim molding.
