Door Arrester, Removing And Installing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Move the door window into the "closed" position.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

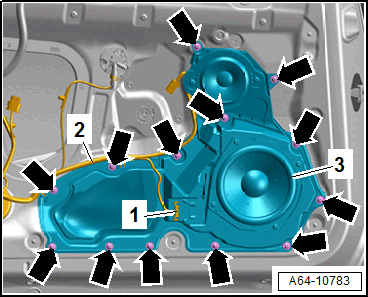

-- Disconnect the connector -1- and free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the trim -3-.

-- Tape off the A-pillar in the door arrester area using adhesive tape, so that the paint will not be damaged.

-- Remove the door arrester bolt -arrow-.

Fig 1: Door Arrester Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the door arrester -1- toward the inside.

Fig 2: Locating Door Arrester Bolts (Inside)

Courtesy of AUDI OF AMERICA, LLC

-- Pull the cap -1- slightly to the side -A arrows- and remove it from the door arrester -2- -arrow B-.

Fig 3: Door Arrester Rubber Grommet

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal and note the following:

Door arrester installation position. Refer to Figure.
Cap installation position. Refer to Figure.

Tightening Specifications

Refer to OVERVIEW - DOOR
Refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
