Trim Molding Cap, Removing And Installing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the cap on the door handle. Refer to DOOR HANDLE CAP, REMOVING AND INSTALLING .

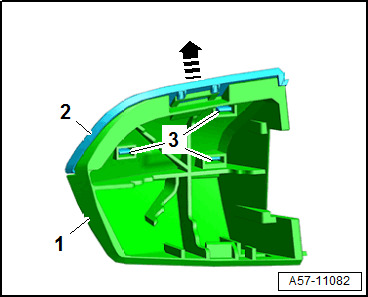

-- Release the retainer -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim molding -2- from the cap -1-.

Installing

Install in reverse order of removal and note the following:

-- When mounting the trim molding, make sure the guides -3- grip into the mounts.
