Outer Window Shaft Strip, Removing And Installing, A7 SPORTBACK
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Removal Wedge:T40233
Removing
-- Move the door window into the "open" position.
-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING, A7 SPORTBACK .

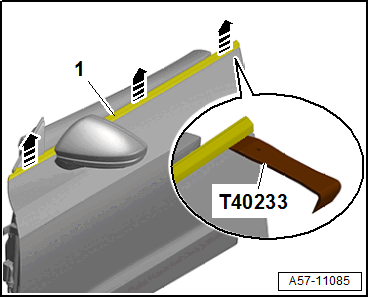

-- Starting at the B-pillar, use the :T40233 to carefully push the window shaft strip -1- upward off of the door flange -arrows-.
-- Remove the window shaft strip.
Installing
TIP:
The lower edge of the window shaft strip can be coated with tire mounting paste for installation.
-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar -A arrows-.
Further installation is the reverse order of removal.
