Door Handle Trim, Removing And Installing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hook Tool:T40207

Removing

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

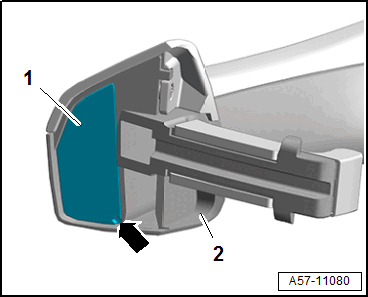

Front trim:

Courtesy of AUDI OF AMERICA, LLC

-- Mount the : T40207 on the opening -arrow- on the trim -1-.

-- Pry the trim off the door handle -2- and remove.

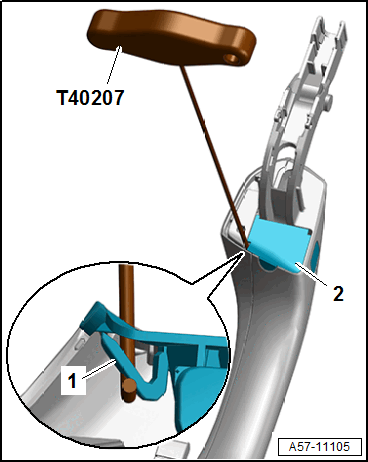

Rear trim:

Courtesy of AUDI OF AMERICA, LLC

-- Guide the : T40207 into the opening and release the catch -1- with a rotational movement.

-- Remove the cover -2-.

Installing

Install in reverse order of removal and note the following:

-- Insert the trim until it engages audibly.
