Door Handle Trim Molding, Removing And Installing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

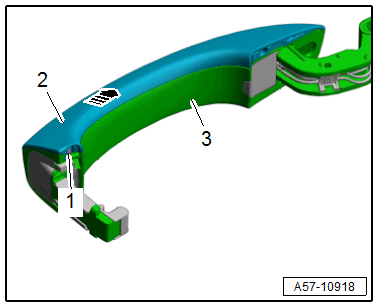

-- Remove the screw -1-.
-- Remove the trim molding -2- from the door handle -3- -arrow-.
Installing
Install in reverse order of removal and note the following:
- The bolt head must not project over the contact surface for the tread.
Tightening Specifications
- Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK
