Spoiler, Removing And Installing, A7 SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Extend the spoiler. Refer to the Owner's Literature.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

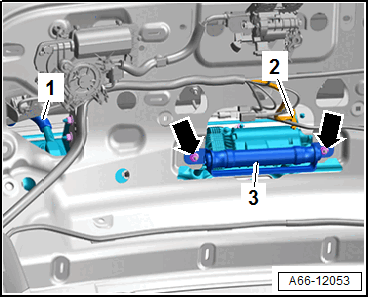

-- Remove the nuts -arrows-.
-- Remove the balance weight -3-.
-- Disconnect the connector -2- and free up the connector.
-- Remove the water drain hoses -1-.

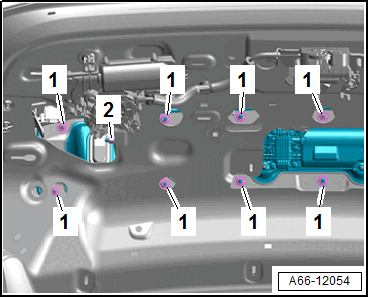

-- Remove the nuts -1- using the :T40078 .
-- Loosen the nuts -2-.

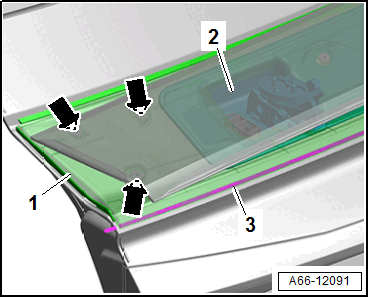

-- Warm up the spoiler cover -1- with the :VAS1978/14A near the bonding -3-.
-- Loosen the retainers -arrows- with the scraper.
-- Pry out the spoiler with the drive unit -2-.
