Dimensions - Rear Name Badges And Emblems, A7 SPORTBACK

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .

Courtesy of AUDI OF AMERICA, LLC

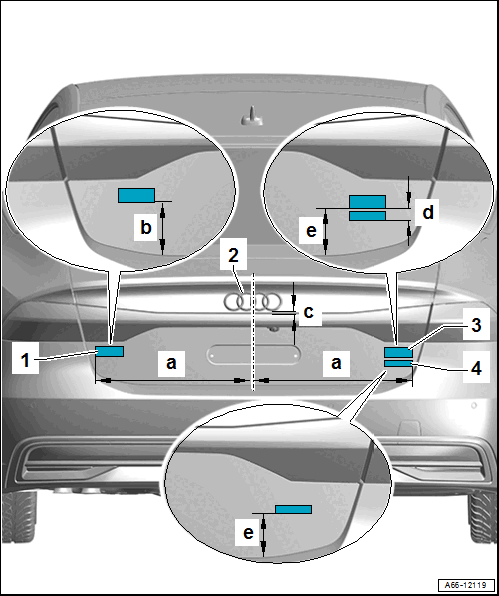

Lettering
- Left
  - A7
  - S7
  Dimension -a- = 489 mm

  Dimension -b- = 55 mm
Audi Emblem
Dimension -c- = 9 mm
Lettering
- Right
  - TFSI
  - TDI
  - 2.0 T
  - 2.0 TDI
  - 3.0 T
  - 3.0 TDI
  - 35 TFSI
  - 40 TFSI
  - 55 TFSI
  - 35 TDI
  - 40 TDI
  - 50 TDI
  Dimension -a- = 489 mm

  Dimension -e- = 56 mm
Right Name Badge
- quattro
Dimension -a- = 489 mm

Dimension -d- = 17 mm

Dimension -e- = 56 mm
