A-Pillar Trim, Removing And Installing, A7 SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the mirror triangle cover. Refer to OVERVIEW - FRONT DOOR TRIM PANEL .

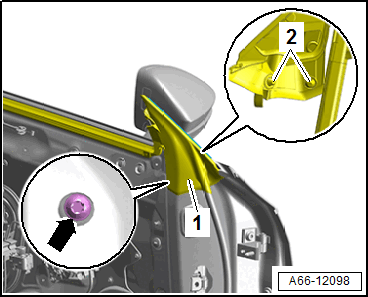

-- Push the window shaft strip -1- to the side near the outer door seal by opening the retainer knobs -2-.
-- Remove the bolt -arrow-.

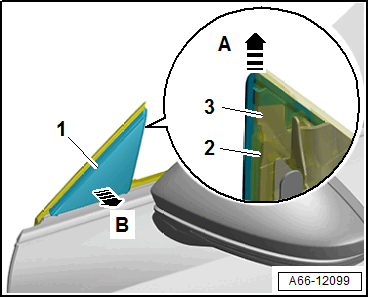

-- Push the A-pillar -1- upward -arrow A-, until the guide -3- on the mount -2- is free.
-- Remove the A-pillar trim to the side -arrow B-.
