Oil Pan Upper Section, Removing And Installing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

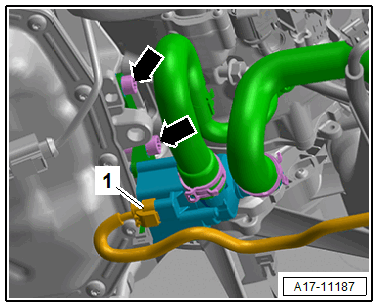

-- Remove the bolts -arrows-, also tie the Starter Generator Coolant Pump -V621- -1- to the side.
All additional procedures are described. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE .
- Refer to OVERVIEW - NOISE INSULATION .
