Valve Stem Seals, Removing And Installing, Cylinder Head Installed
Special tools and workshop equipment required
- Puller - Valve Seal: 3364
- Seal Installer - Valve Stem: 3365
- Valve Cotter Tool Kit: VAS5161A with the Valve Keeper Tool Kit - Compression Stud: VAS5161/10
- Guide Plate: VAS5161A/43
- Spark Plug Socket Adapter - 3/8" : VAS6919
- Wrench - 21mm: T40263
- Adapter: T40314
- Mounting Sleeve. Refer to Parts Information
Procedure
-- Remove the applicable camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
-- Mark the allocation of the roller rocker lever and the hydraulic lifter so they can be installed again.
-- Remove the roller rocker lever with the hydraulic lifter and place them on a clean surface.
-- Remove all spark plugs using the : VAS6919 .
Risk of damaging the engine by the timing mechanism skipping.
- Only let the engine turn in the direction of engine rotation.
-- Turn the crankshaft using the : T40263 and : T40314 -arrow- until the pistons of the corresponding cylinder are in "bottom dead center (BDC)".
In the : VAS5161A/43 two M5x40 bolts and four holes -a, b, c, d- are present. These are used after each installation situation.
-- Align the : VAS5161A/43 -1- on the cylinder head at the same time pay attention to the marking:
A - Exhaust side
E - Intake side
-- Tighten the guide plate bolts -arrows- to 9 Nm.
-- Insert the : VAS5161/3A in the guide plate and loosen the stuck valve retainers with a plastic mallet.

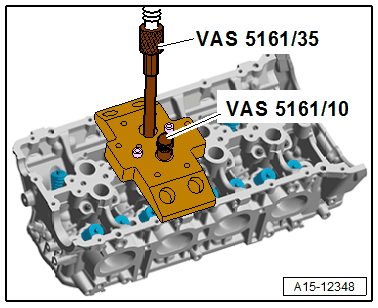

-- Install the : VAS5161/10 in the guide plate.
-- Install the : VAS5161A/35 hand-tight in the respective spark plug thread.
-- Connect the adapter to the compressed air using a commercially available intermediate piece and give steady pressure.
- Minimum pressure: 6 bar (87.02 psi)

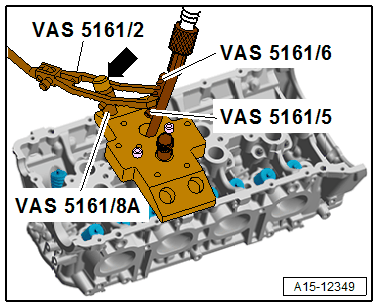

-- Install the Retainer : VAS5161/6 with the Guide Forks M6/M8 with Threaded Studs : VAS5161/5 in the guide plate.
-- Insert the Assembly Cartridge : VAS5161/8A into the opening above the valve spring that is to be removed.
-- Engage the Pressure Fork : VAS5161/2 at the engaging device and press the installation cartridge downward.
-- At the same time, turn the installation cartridge knurled bolt -arrow- right until points engage in the valve retainers.
-- Move the knurled bolt left and right slightly. This presses the valve retainers apart and captures them in the assembly cartridge.
- The knurled bolt slides all the way in the assembly cartridge.
-- Release the pressure fork.
-- Remove the assembly cartridge.
Risk of damaging the valves due to a pressure decrease in the cylinder.
- Never remove the guide plate or the compression stud.
- keep the pressure in the cylinder at a minimum of 6 bar (87.02 psi).
-- Remove the valve spring and the valve spring retainer and mark the installation position.
-- Remove the valve stem seal with the : 3364 .
If the : 3364 cannot be used on some valve stem seals due to a limited amount of space, proceed as follows:
-- Remove the roll pin -arrow- on the puller with a drift and remove the impact puller attachment.
-- Position the lower section of the : 3364 on the valve stem seal.
-- Secure the puller with the drift or pin punch -1-.
-- Position the extractor lever on the puller and remove the valve stem seal -arrow-.
- So that the valve stem seal -2- is not damaged during installation, mount the Mounting Sleeve -1- on the valve stem.
-- Lightly oil the valve stem seal sealing lip.
-- Insert the valve stem seal in the : 3365 and carefully press on the valve guide all the way.
-- Remove the Mounting Sleeve.
If the valve retainers were removed from the assembly cartridge, they must then be inserted into the : VAS5161/18 .
- The large diameter of the valve retainers point upward.
-- Press the cartridge from above onto the insertion device and valve retainers.
-- Insert the valve spring and the valve spring retainer.
- Intake valve installation position. Refer to Figure.
- Exhaust valve installation position. Refer to Figure.
-- Insert the : VAS5161/8A back into the : VAS5161A/43 .
-- Press the pressure fork down and pull the knurled bolt -arrow- up while turning left and right. This inserts the valve retainers.
-- Release the pressure fork with the knurled bolt still raised.
-- Repeat the procedure on each valve.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Make sure all the roller rocker levers lie correctly on the ends of the valve stems and are clipped onto the respective hydraulic lifters.
-- Install the spark plugs. Refer to OVERVIEW - IGNITION SYSTEM .
-- Install the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
