Cylinder Head Bank 1 (Right), Removing

Special tools and workshop equipment required

• Engine Bung Set: VAS6122
• Socket - T30: T10405

Procedure

-- Remove the cylinder bank 1 (right) camshaft housing. Refer to CYLINDER BANK 1 (RIGHT) CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the right turbocharger. Refer to TURBOCHARGER, REMOVING CYLINDER BANK 1 (RIGHT) .

-- Remove the ribbed belt from the starter generator. Refer to STARTER GENERATOR RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the starter generator. Refer to GENERATOR, REMOVING AND INSTALLING .

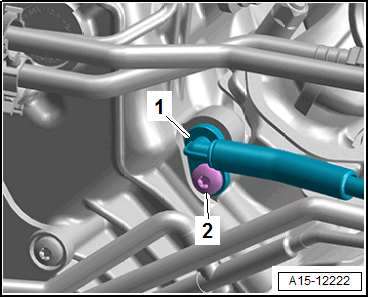

-- Remove the bolt -2- and remove the coolant ventilation line -1- from the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

Audi RS6/RS7:

Courtesy of AUDI OF AMERICA, LLC

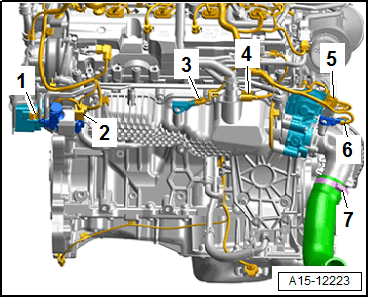

-- Disconnect the connectors:

1. For the After-Run Coolant Pump -V51-
2. For the Charge Air Pressure Actuator -V465-

-- Remove the Charge Air Pressure Actuator -V465- from the bracket and free up and move it to the side.

3 - For the Mechanical Coolant Pump Switch Valve -N649-

-- Remove the Mechanical Coolant Pump Switch Valve -N649- from the bracket, free up and push to the side.

4 - For Tank Ventilation Pressure Sensor 1 - G950-, if installed

5 - For the Positive Crankcase Ventilation Heating Element -N79-

6 - For the Throttle Valve Control Module -GX3-

7 - For the Manifold Absolute Pressure Sensor -G71-

Audi A8 / S8 / RSQ8 / SQ8 / SQ7:

Courtesy of AUDI OF AMERICA, LLC

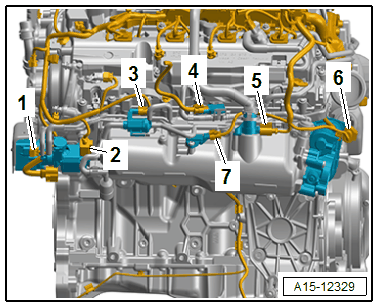

1. For the After-Run Coolant Pump -V51-
2. For the Charge Air Pressure Actuator -V465-

-- Remove the Charge Air Pressure Actuator -V465- from the bracket and free up and move it to the side.

3 - For the Manifold Absolute Pressure Sensor -G71-

4 - For the Positive Crankcase Ventilation Heating Element -N79-

5 - For the Throttle Valve Control Module -GX3-

6 - For the Charge Air Pressure Sensor -G31-

-- Free up the wiring harness on the intake manifold.

-- Loosen the hose clamp -7- and remove the air duct hose.

All:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and the remove the chain tensioner -1-.

-- Remove the guide pin -5-.

-- If the cylinder head is removed with the engine installed: push the guide rail -4- upward and secure using a cable tie to the camshaft timing chain -3- as shown.

-- Remove the bolts -arrows-.

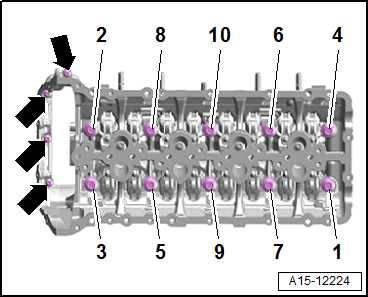

Fig 1: Cylinder Head Bank 1 (Right) Bolts Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the cylinder head bolts in the sequence -1 to 10-.

-- Remove the bolts and the cylinder head carefully.

-- Lay the cylinder head on a soft surface, such as foam.

-- Seal the open channels of the intake and exhaust tract with a clean cloth or with completely clean plugs from the : VAS6122  .
