Cylinder Bank 2 (Left) Camshaft Housing, Removing And Installing: Installing

• Replace the bolts that were tightened with an additional turn after removing them.
• Replace the seal after removal.
• The hydraulic lifters and roller rocker lever are inserted.
• Pay attention to the camshaft housing pairing number and cylinder head. Refer to Figure.

When only one camshaft housing is removed the "TDC" position of the camshaft must be checked when the camshaft housing is installed.

-- Remove the Camshaft Position Sensor 3 -G300-. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

• The exhaust camshaft -2- has a flattened side -1-. The flattened side needs to be visible through the installation opening of the corresponding camshaft position sensor in "TDC" position.

  Courtesy of AUDI OF AMERICA, LLC

• The crankshaft is locked using the : T10492  or : T40069  at "TDC" point.
• The : T40331/1  is tightened on the left camshaft housing.

-- Remove the Camshaft Position Sensor 2 -G163-. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

-- To prevent contamination of the lubricating system with sealant residue, place a clean cloth over the open engine components.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

-- Remove any sealant residue on the camshaft housing -1- and cylinder head using a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

-- Lubricate the running surfaces of both camshafts.

• Be sure to check the expiration date of the sealant.
  Fig 2: Cut Tube Nozzle At Front Marking

  Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.5 mm).

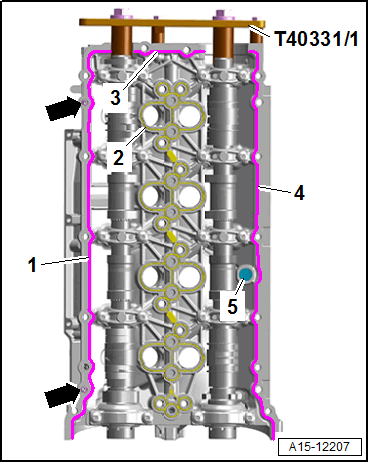

-- Check if the alignment sleeves -arrows- for centering the camshaft housing are installed.

Courtesy of AUDI OF AMERICA, LLC

-- Check if the check valve -5- is inserted.

-- Insert the seal -2-.

-- Apply sealant beads -1, 3 and 4- on the clean sealing surfaces of the camshaft housings.

• Sealant bead thickness 3.0 mm
• Install the camshaft housing within five minutes of applying the sealant.

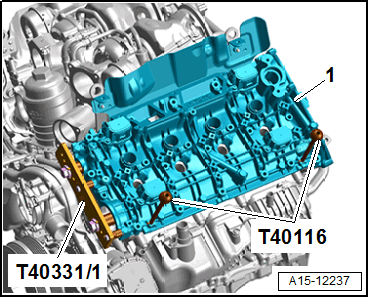

Procedure, if the Engine is Removed Due to Preliminary Work.

Courtesy of AUDI OF AMERICA, LLC

-- Position the camshaft housing -1- on the cylinder head but do not press on the sealant beads yet.

• The sealant must not get into the threaded holes.

-- Insert the : T40116  into the camshaft housing and cylinder head.

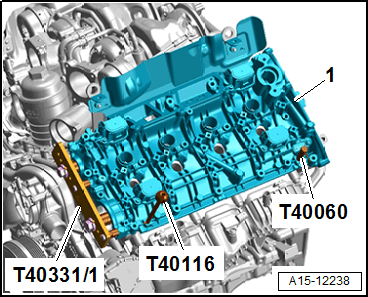

Procedures, Where the Engine is NOT Removed:

Courtesy of AUDI OF AMERICA, LLC

-- Position the camshaft housing -1- on the cylinder head but do not press on the sealant beads yet.

• The sealant must not get into the threaded holes.

-- Insert the : T40116  into the front camshaft housing and cylinder head.

-- Insert the : T40060  into the rear camshaft housing and cylinder head.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Next install all bolts for the camshaft housing by hand and then tighten.

-- Remove the : T40116  with the : T10133/3  .

-- If necessary remove the : T40060  using pliers.

Further installation is performed in reverse order of removal, while noting the following:

-- Insert the lower section of the noise insulation.

-- Install the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Install the fuel injectors. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Install the oil separator. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

-- Position the camshaft timing chain (adjust the valve timing). Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Install Camshaft Position Sensor 2 - G163- and Camshaft Position Sensor 3 - G300-. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

Additional procedures depending on the model. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
