Overview - Impact Member
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

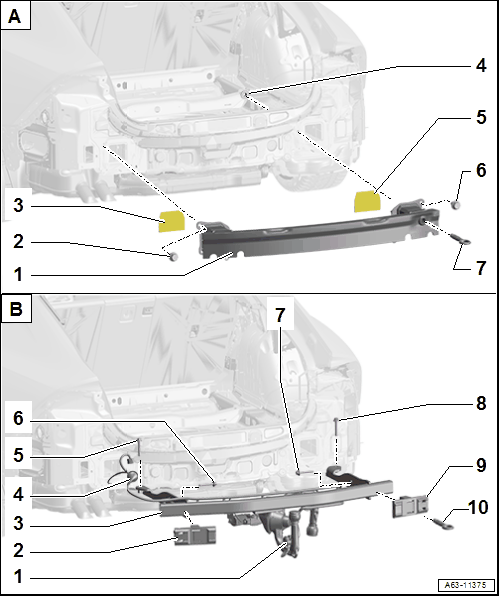

- A - Impact Member, Equipment Versions without Trailer Hitch
- 1 - Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, EQUIPMENT VERSIONS WITHOUT TRAILER HITCH .
- 2 - Bolt
- Replace after removing.
- Quantity: 3
- Tightening specification and sequence. Refer to Fig 2.
- 3 - Foam Seal
- 4 - Nut
- 55 Nm
- 5 - Foam Seal
- 6 - Bolt
- Replace after removing.
- Quantity: 3
- Tightening specification and sequence. Refer to Fig 2.
- 7 - Towing eye
- B - Impact Member, Equipment Versions with Trailer Hitch
- 1 - Socket
- Removing and installing. Refer to Interior Lights, Switches .
- Connector assignment. Refer to Interior Lights, Switches .
- 2 - Filler Piece
- Left
- 3 - Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, EQUIPMENT VERSIONS WITH TRAILER HITCH .
- 4 - Grommet
- 5 - Bolt
- Replace after removing.
- Tightening specification and sequence. Refer to Fig 3.
- 6 - Bolt
- Replace after removing.
- Tightening specification and sequence. Refer to Fig 3.
- 7 - Bolt
- Replace after removing.
- Tightening specification and sequence. Refer to Fig 3.
- 8 - Bolt
- Replace after removing.
- Tightening specification and sequence. Refer to Fig 3.
- 9 - Filler Piece
- Right
- 10 - Towing Eye
Impact Member without Trailer Hitch - Tightening Specification and Sequence
-- Tighten the bolts and nuts in the order shown.
| Bolts/Nuts | Tightening Specification/Additional Turn |
|---|---|
| -1 to 6- | 50 Nm + 45° |
| -7- | 55 Nm |
Impact Member with Trailer Hitch - Tightening Specification and Sequence
-- Tighten the bolts to 60 Nm + 90° in the displayed sequence.
