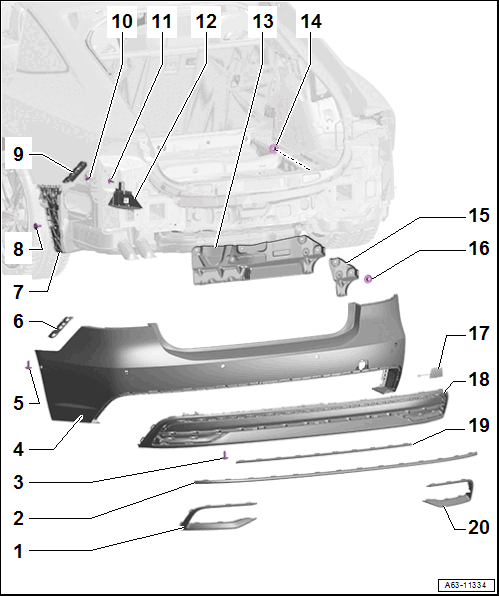

Overview - Bumper Cover, A7 SPORTBACK
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Trim Molding
- Left
- Removing and Installing. Refer to SIDE BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A7 SPORTBACK .
- Center Trim Molding
- Lower
- Removing and Installing. Refer to LOWER CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A7 SPORTBACK .
- Bolt
- Quantity: 5
- 2 Nm
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A7 SPORTBACK .
- Bolt
- 2 Nm
- Locking rail
- For the bumper cover
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A7 SPORTBACK .
- Bolt
- Quantity: 3
- Tightening specification and sequence. Refer to Fig 1.
- Mount
- Upper
- For securing the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING, A7 SPORTBACK .
- Bolt
- Quantity: 3
- Tightening specification and sequence. Refer to Fig 2.
- Bolt
- Quantity: 3
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bracket
- for the lane change assistance control module
- Mount
- Lower
- For equipment versions without trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Quantity: 4
- 4 Nm
- Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Equipment versions without trailer hitch: quantity: 4
- Equipment versions with a trailer hitch, quantity: 2
- 4 Nm
- Cover
- For the towing eye
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A7 SPORTBACK AND S7 SPORTBACK TFSI .
- Center Trim Molding
- Upper
- Removing and Installing. Refer to UPPER CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A7 SPORTBACK .
- Trim Molding
- Right
- Removing and Installing. Refer to SIDE BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A7 SPORTBACK .
Bumper Cover Side Mount - Tightening Specification and Sequence
-- Tighten the bolts in sequence -1, 2 and 3- to 3 Nm.
Bumper Cover Upper Mount - Tightening Specification and Sequence
-- Tighten the bolts in sequence -1, 2 and 3- to 3 Nm.
