Impact Member, Removing And Installing, Equipment Versions With Trailer Hitch: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment side trim panels. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the spare tire well trim. Refer to SPARE TIRE WELL TRIM, REMOVING AND INSTALLING .
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

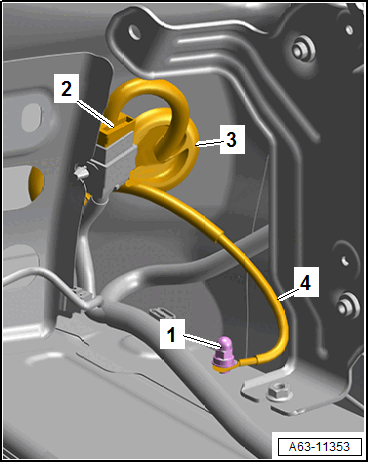

-- Disconnect the connector -2-.
-- Remove the nut -1- and free up the ground wire -4-.
-- Press the grommet -3- outward.

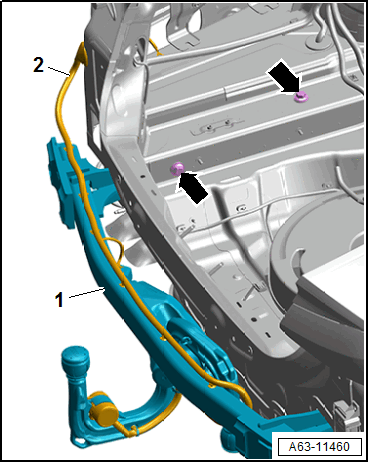

-- Remove the bolts -arrows-.
-- Guide the wiring harness -2- out of the opening in the body.
-- Remove the impact member -1- with help from a second technician.
