Upper Center Bumper Cover Trim Molding, Removing And Installing, A7 SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, A7 SPORTBACK .

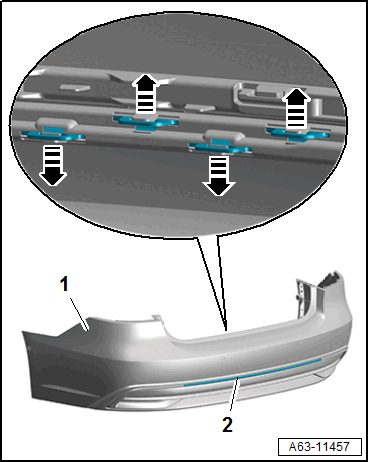

-- Release the catches -arrows- and remove the center trim molding -2- from the lower section of the bumper cover -1-.

GWWA63-11457Courtesy of AUDI OF AMERICA, LLC
