Bumper Cover Mount, Removing And Installing, Bottom: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

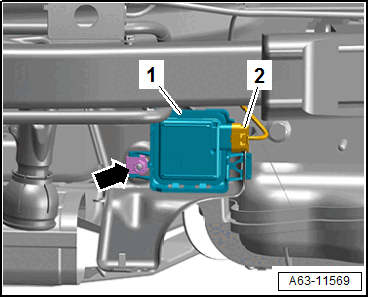

A6:
-- Disconnect the connector -2-.
-- Remove the spring nut -arrow-.
-- Disengage and remove the bracket -1- for the garage door opener control module.

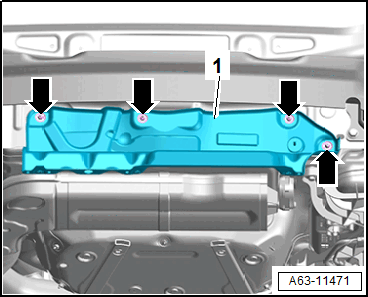

Equipment versions without trailer hitch:
-- Remove the nuts -arrows-.
-- Remove the bumper cover mount -1-.

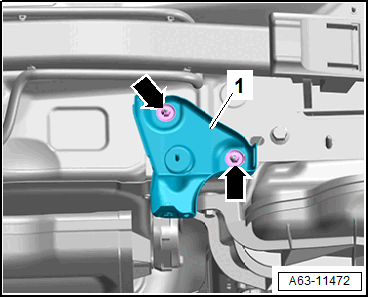

Equipment versions with trailer hitch:
-- Remove the nuts -arrows-.
-- Remove the bumper cover mount -1-.
