Bumper Cover Lower Section, Removing And Installing, S7 SPORTBACK TDI: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

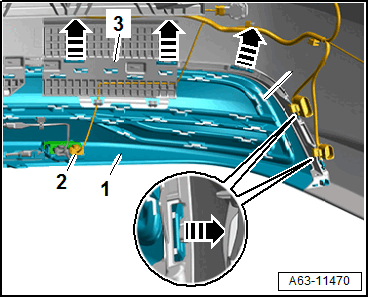

-- Remove the bolts -arrows- from the bumper cover lower section.
-- Remove the rear underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .
-- If equipped, disconnect the connector -2- and free up the wiring harness.
-- If equipped, free up the power rear lid opening sensor 2.
-- Release the retainers -arrows- and remove the lower section -1- from the bumper cover -3-.
