Side Air Intake Grille, Removing And Installing, S7 SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

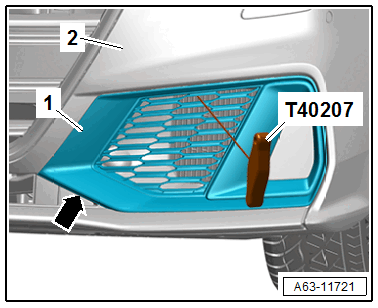

-- Place the :T40207 in the opening and remove the air intake grille -1- from the bumper cover -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry the air intake grille out of the lower retainers -arrow- using the : T40233 .

-- Release the retainers -arrows- if equipped.

Courtesy of AUDI OF AMERICA, LLC

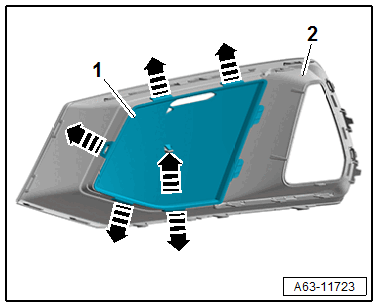

-- Remove the trim -1- from the air intake grille -2-.
