Side Air Intake Grille, Removing And Installing, A7 SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

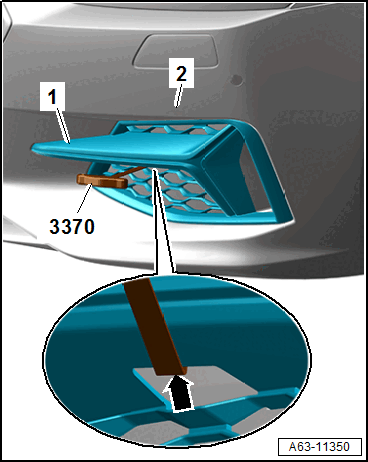

-- Insert the : 3370  in the recess -arrow- and remove the air intake grille -1- from the bumper cover -2-.

GWWA63-11350Courtesy of AUDI OF AMERICA, LLC

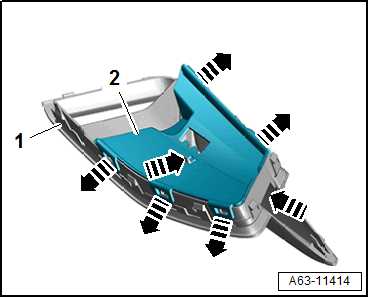

-- Release the catches -arrows-.

GWWA63-11414Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim -2- from the air intake grille -1-.
