Molded Foam Part, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnical components can deploy unintentionally.
There is a risk of injury.
- Discharge static electricity by briefly touching the door striker.

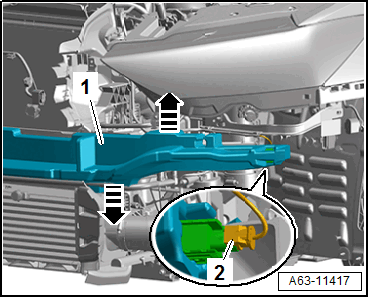

-- Disconnect the connector -2- by removing the connector lock and pressing it down.
-- Release the tabs -arrows- and remove the molded foam part -1- from the impact member.
