Lock Carrier Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

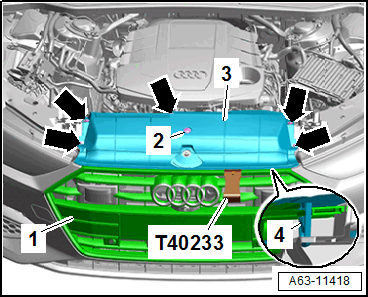

-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the expanding rivet -2-.
-- Remove the bolts -arrows-.
-- Release the catches -4- of the lock carrier cover -3- on the radiator grille -1- with the :T40233 .
-- Remove the lock carrier cover.
